Our Journey with FDM 3D Printing: Innovating and Scaling at iTechnology LLC

Introduction

In this article, we will explore FDM (Fused Deposition Modeling) and 3D printing from a practical perspective, focusing on bringing a product idea to reality. We will share our journey and experiences at iTechnology LLC, as we transformed the concept of a smart speaker cover designed to withstand all weather conditions into a tangible product using primarily FDM 3D printing.

Section 1: The Basics of FDM 3D Printing

Overview of FDM (Fused Deposition Modeling)

Fused Deposition Modeling (FDM) is a popular 3D printing technology known for its simplicity, versatility, and cost-effectiveness. FDM printers work by extruding thermoplastic filaments through a heated nozzle, depositing the material layer by layer to build a three-dimensional object. This technology is ideal for prototyping, product development, and small-scale manufacturing.

Mechanical Working of FDM Printers

An FDM 3D printer consists of several key components:

• Extruder: Pulls the filament from the spool and feeds it into the hot end, where it is melted.

• Build Plate: The surface on which the 3D object is built, typically moving along the Z-axis.

• Filament Spool: The source of the thermoplastic filament, often made of materials like PLA, ABS, or PETG.

• Stepper Motors: Control the precise movements of the extruder and build plate along the X, Y, and Z axes.

The printer reads the G-code file, which contains instructions on how to move the extruder and build plate, as well as temperature settings and printing speed. As the filament is extruded, it cools and solidifies, forming a solid layer. The printer continues this process, building the object layer by layer until the final product is complete.

Section 2: The Slicing Process

Introduction to Slicing Software

Photo: First prototype of the smart speaker enclosure.

Slicing software is a crucial tool in the 3D printing workflow. It prepares the 3D model for printing by converting it into G-code, which the printer can understand and execute. Popular slicing software includes Cura, PrusaSlicer, and Simplify3D, each offering unique features and capabilities.

How Slicers Work

• Importing and Preparing 3D Models: Import a 3D model, typically in STL or OBJ format, into the slicing software.

• Setting Print Parameters: Set various parameters such as layer height, infill density, print speed, and support structures, which affect the quality, strength, and print time of the final object.

• Generating G-code: The slicer generates the G-code file, which contains all the instructions the printer needs to create the object, including the toolpaths for each layer.

Visual Content:

• Photo: First prototype of the smart speaker enclosure.

Section 3: FDM vs. SLA 3D Printing

Understanding Stereolithography (SLA)

Stereolithography (SLA) is known for its high resolution and fine detail. Unlike FDM, which uses thermoplastic filaments, SLA uses a liquid resin cured by a UV laser or light source. The process involves selectively curing the resin layer by layer, creating a solid object from the liquid material.

Comparative Analysis

• Advantages of SLA:

  • High precision and fine details.

  • Smooth surface finish.

  • Ideal for complex geometries and intricate designs.

• Disadvantages of SLA:

  • Higher material costs.

  • More complex post-processing requirements.

  • Generally slower than FDM.

• Advantages of FDM:

  • Lower material and operational costs.

  • Faster print times for larger objects.

  • Easier to use and maintain.

• Disadvantages of FDM:

  • Lower resolution compared to SLA.

  • Visible layer lines on finished objects.

  • Limited to less complex geometries.

• SLA Resin Printers: Best for small products requiring high detail. Phrozen is a leading brand in the resin printing market, known for their exceptional quality and precision.

Section 4: Prototyping and Iteration

Designing the Product

Video: From Paper to Model (drawing, design, concept to reality).

Our journey began with designing a weatherproof enclosure for a smart speaker. Using AutoCAD, we created a model aimed at protecting the speaker from outdoor elements while enhancing its acoustic performance.

Prototyping and Iteration

The design process involved numerous iterations. Each prototype revealed new insights and areas for improvement. Material selection, structural integrity, and ease of assembly were key considerations. It took dozens of prints to achieve a functional and aesthetically pleasing design.

Visual Content:

• Video: From Paper to Model (drawing, design, concept to reality).

• Video: Environmental testing (temperature, waterproof, sound).

Video: Environmental testing (temperature, waterproof, sound).

Section 5: Expanding Production

Securing Funding and Planning

Video: 3D printing multiple units.

Recognizing the potential of our product, we secured additional funding to expand our operation. Detailed planning and resource allocation were essential to meet our production goals. We calculated the requirements for producing 1000 units, including material costs, printer maintenance, and labor.

Production Setup

We utilized 10 FDM printers to handle the increased production demand. Each printer was calibrated and optimized for consistent quality. Workflow efficiency was paramount, from filament loading to print removal and post-processing.

Visual Content:

• Video: 3D printing multiple units.

Section 6: Navigating Regulatory and Legal Challenges

UL Certification

Obtaining UL certification was imperative for our product to be market-ready. UL registration ensures that electronic products meet safety standards, which is critical for consumer trust and regulatory compliance. We navigated the rigorous testing and documentation process to achieve certification.

Trademark and Patent Protection

Protecting our intellectual property was another critical step. We filed for trademarks and patents through the USPTO, involving detailed documentation and adherence to legal requirements. This safeguarded our innovation and brand identity.

Legal Challenges

Despite meticulous preparations, we faced a legal challenge from a large corporation. The dispute tested our resilience and legal acumen. Although we emerged victorious, the experience underscored the importance of robust legal strategies in business.

Section 7: Ensuring Quality and Performance

Rigorous Testing

Photo: Staging and packaging.

To ensure our product could withstand harsh conditions, we subjected it to rigorous testing. The enclosure was tested under pouring rain, in below-freezing temperatures, and exposed to various hazards. These tests validated the durability and reliability of our design.

Enhancing Product Performance

One exciting discovery was how the enclosure amplified the sound of the Alexa smart speaker. This unexpected benefit added significant value to our product, making it more appealing to consumers.

Visual Content:

• Photo: Staging and packaging.

Section 8: Market Launch and Sales

Launching on Amazon

With the product ready, we launched it on Amazon, leveraging the platform's vast reach and user base. Strategic marketing efforts, including optimized product listings and targeted ads, helped drive initial sales. Customer feedback was overwhelmingly positive, highlighting the product's durability and enhanced audio performance.

Dealing with Competition

Navigating the competitive landscape on Amazon was challenging. We focused on differentiating our product through quality, unique features, and exceptional customer service. This approach helped us maintain a strong market position.

Final Outcome

The success of our product on Amazon validated our efforts and innovation. Almost all units were sold, proving the market demand for high-quality, weatherproof smart speaker enclosures. The project was a resounding success, both commercially and technically.

Conclusion

Reflecting on the Journey

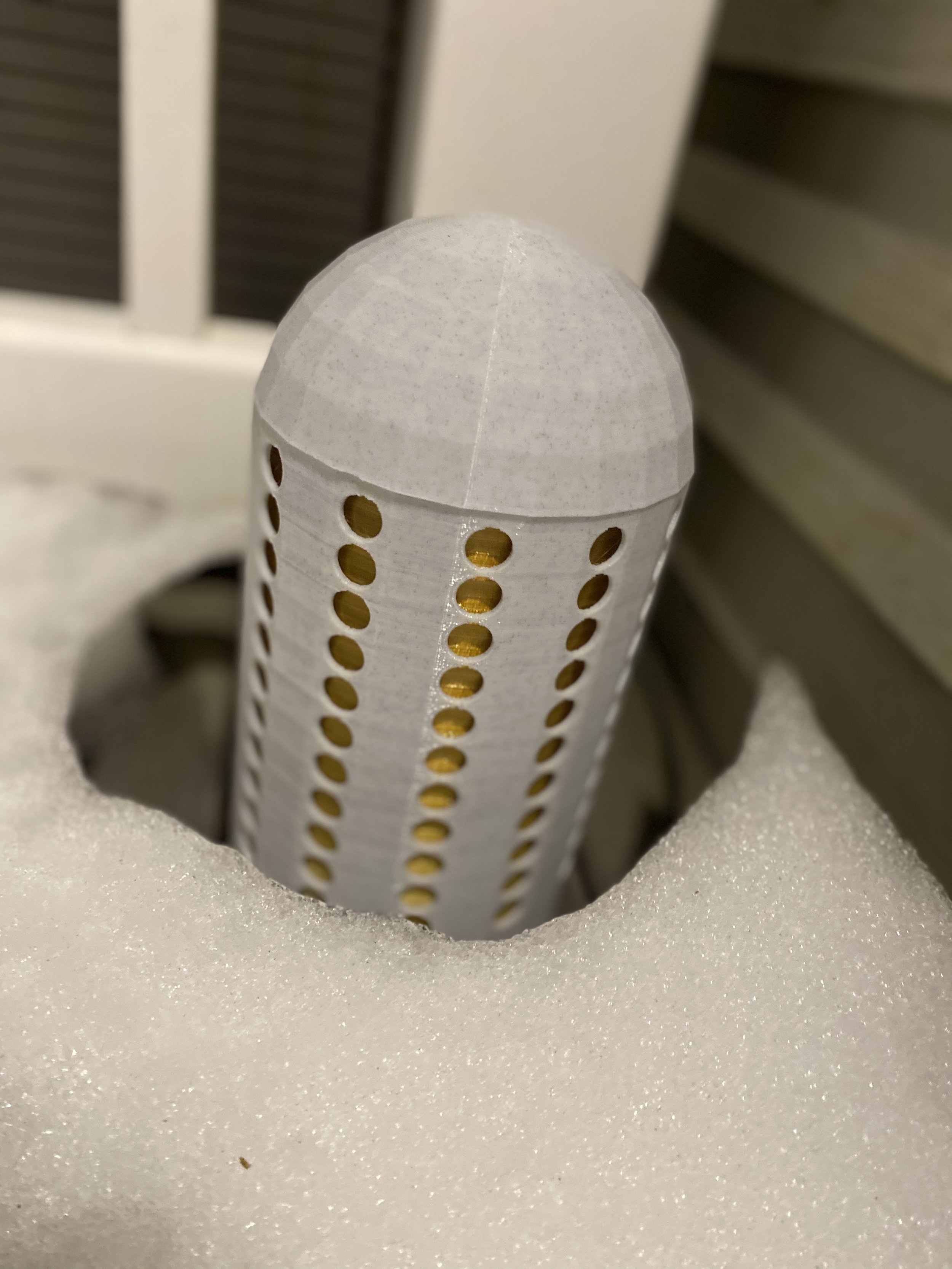

Photo: Smart speaker cover after a snow storm 4 years post production.

The journey from concept to market-ready product was filled with challenges and triumphs. As a researcher, I gained invaluable experience in 3D printing, product design, and manufacturing. The lessons learned have been instrumental in my professional growth.

Inspiring Future Innovators

I hope this story inspires others to explore the world of 3D printing and innovation. With the right tools, creativity, and perseverance, anyone can turn their ideas into reality. I encourage readers to take the leap, experiment, and bring their inventions to life.

Invitation for Feedback

I invite readers to share their experiences and thoughts on 3D printing and innovation. Your feedback and insights are invaluable as we continue to push the boundaries of what's possible with additive manufacturing.

Additional Insights

Different Types of 3D Printers

3D printing technology encompasses various types, each suited to different applications:

• FDM Printers: Ideal for rapid prototyping and larger objects.

• Resin Printers: Best for small products requiring high detail. Phrozen is a leading brand in the resin printing market, known for their exceptional quality and precision.

By intertwining my personal experience with educational insights, this article provides a comprehensive guide to the journey of designing and bringing a 3D printed product to market. Through the integration of multimedia content, readers can visually and interactively engage with each step of the process.
